Intended for interior applications Simplicity corrugated aluminium profiles form part of a modular panelling system that allows for secret fixing in either vertical or horizontal orientations.

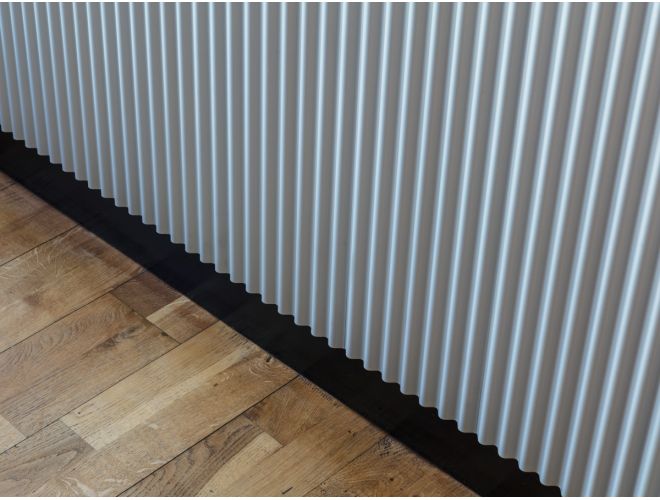

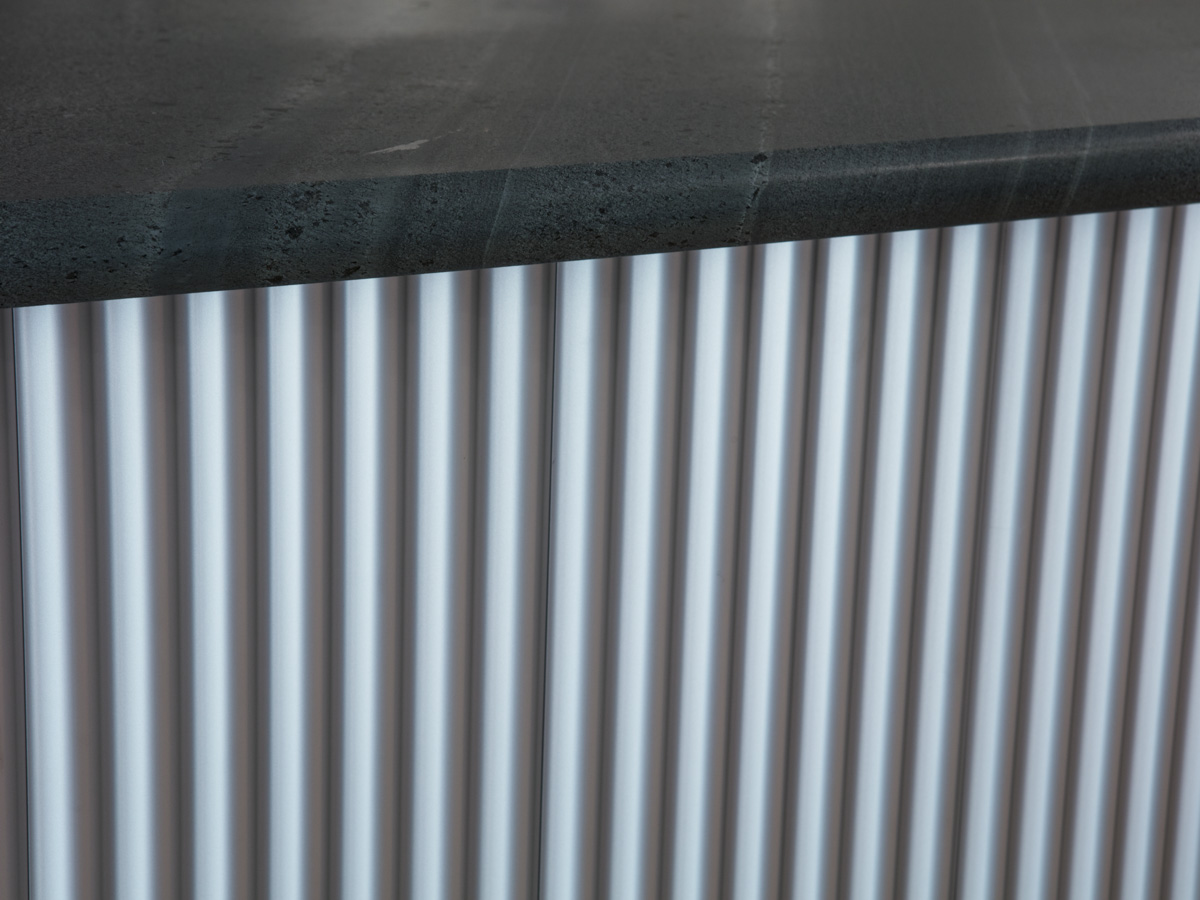

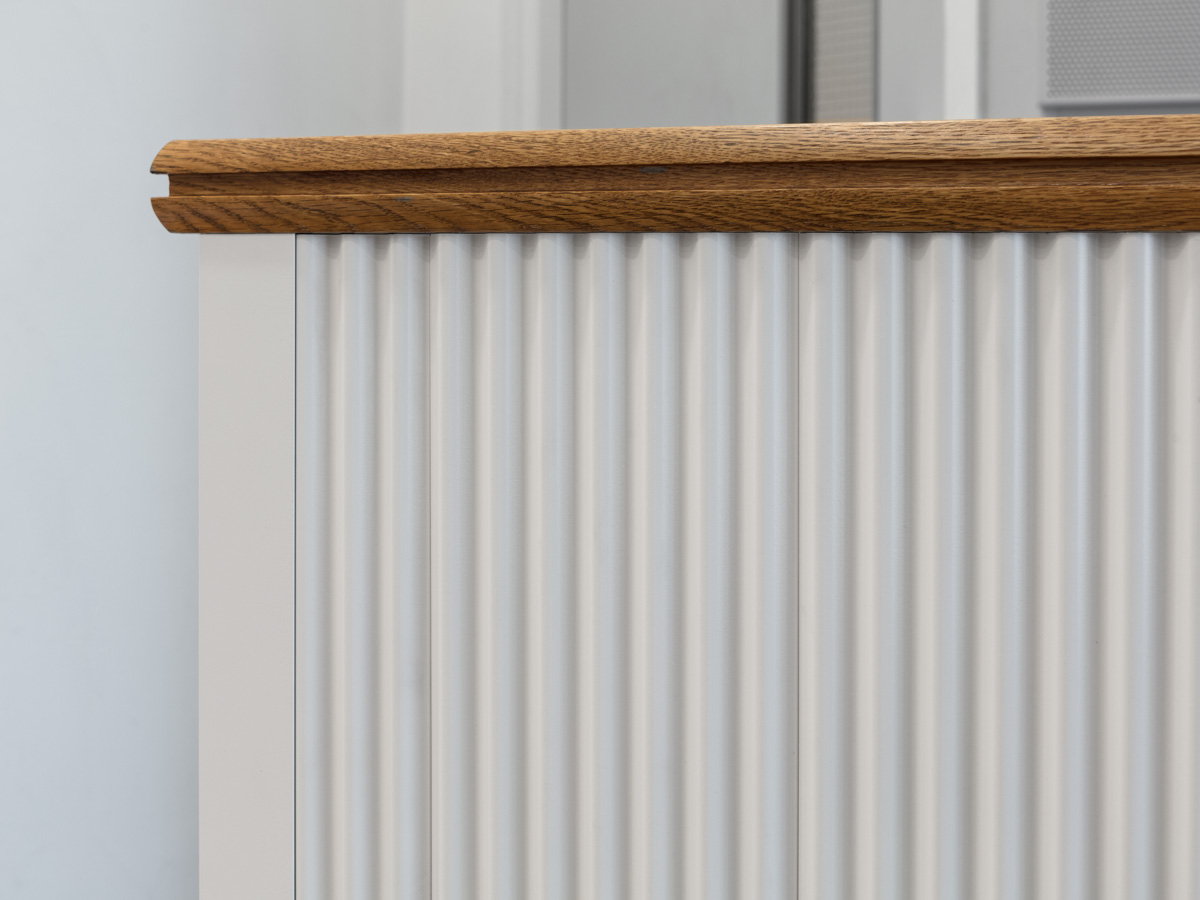

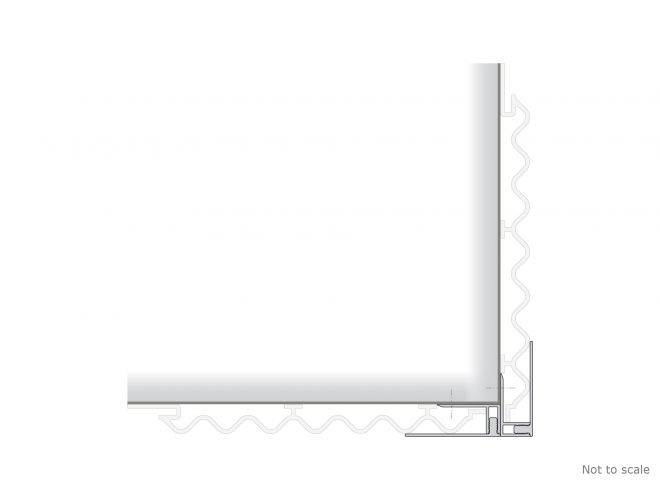

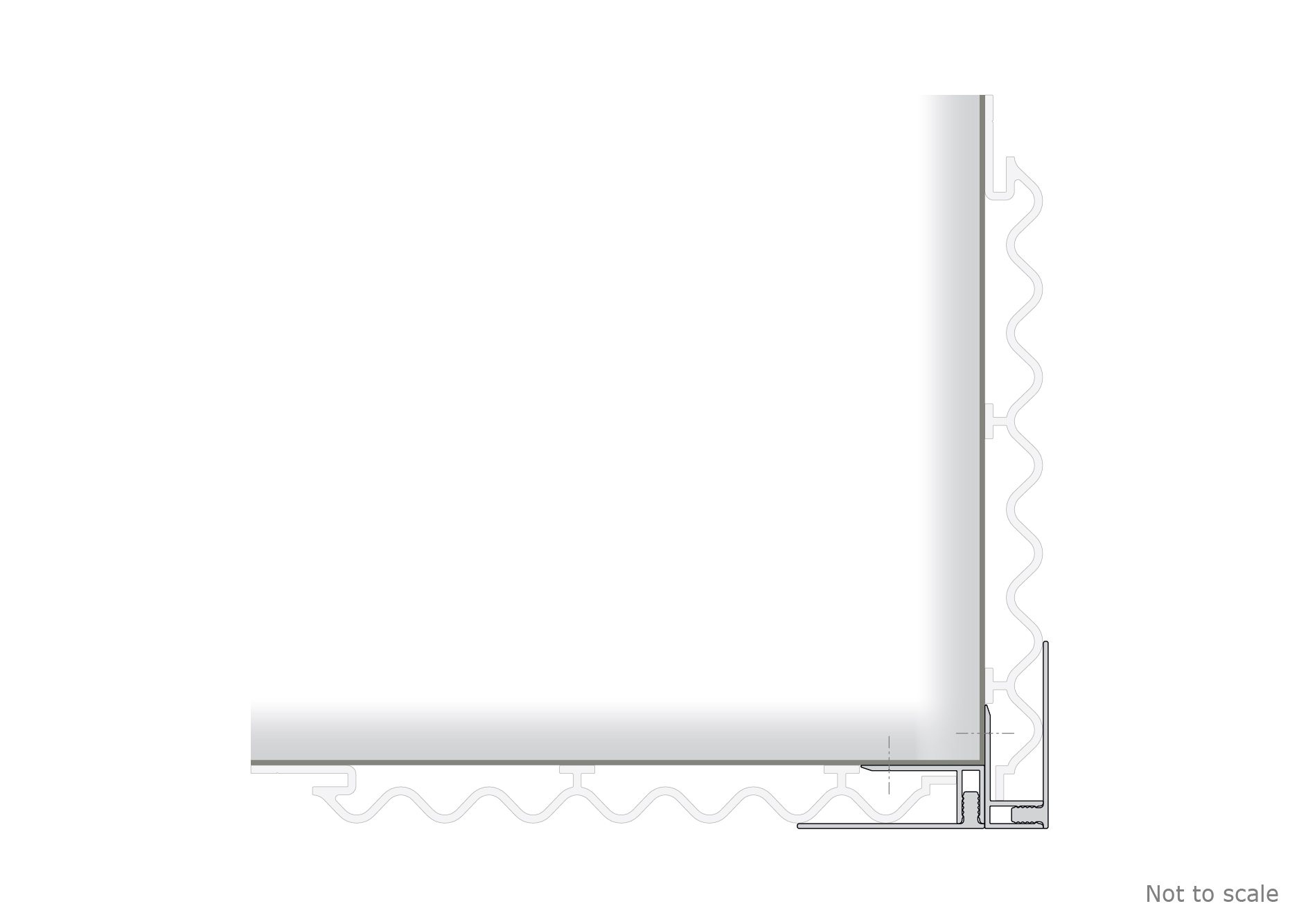

These symmetrically profiled extruded panels (175mm cover width) are easily slotted together, providing a continuous curvaceous effect. Corner and end trims neatly integrate with the corrugated profiles.

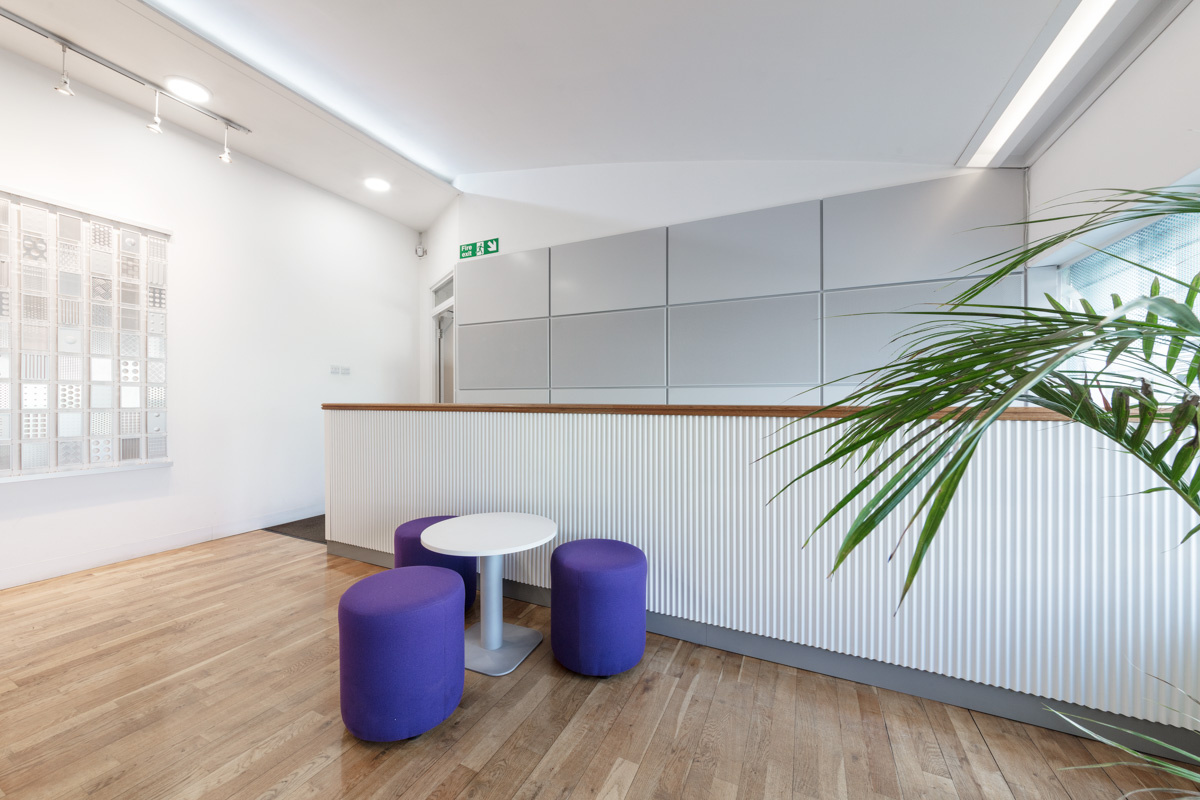

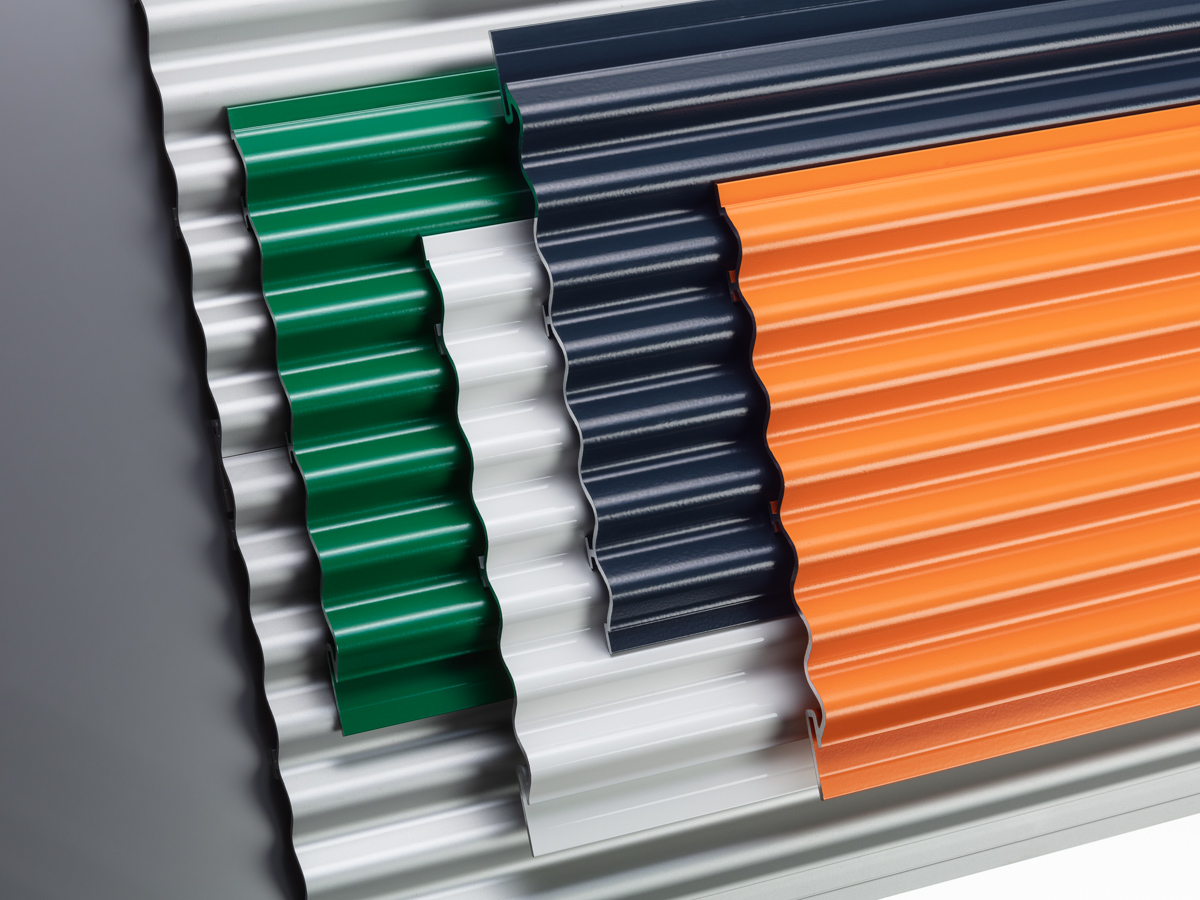

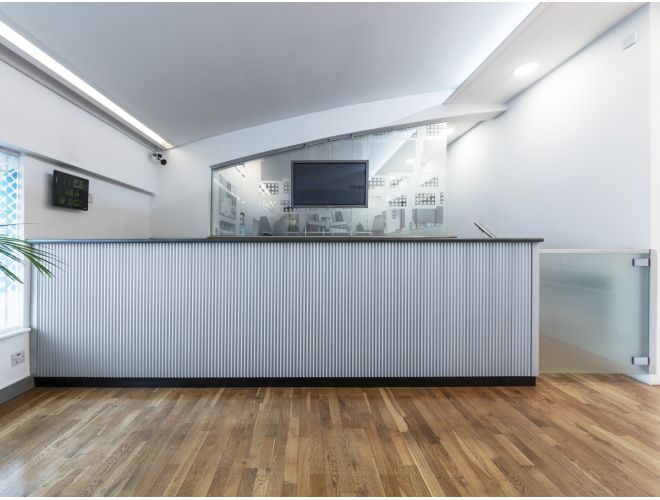

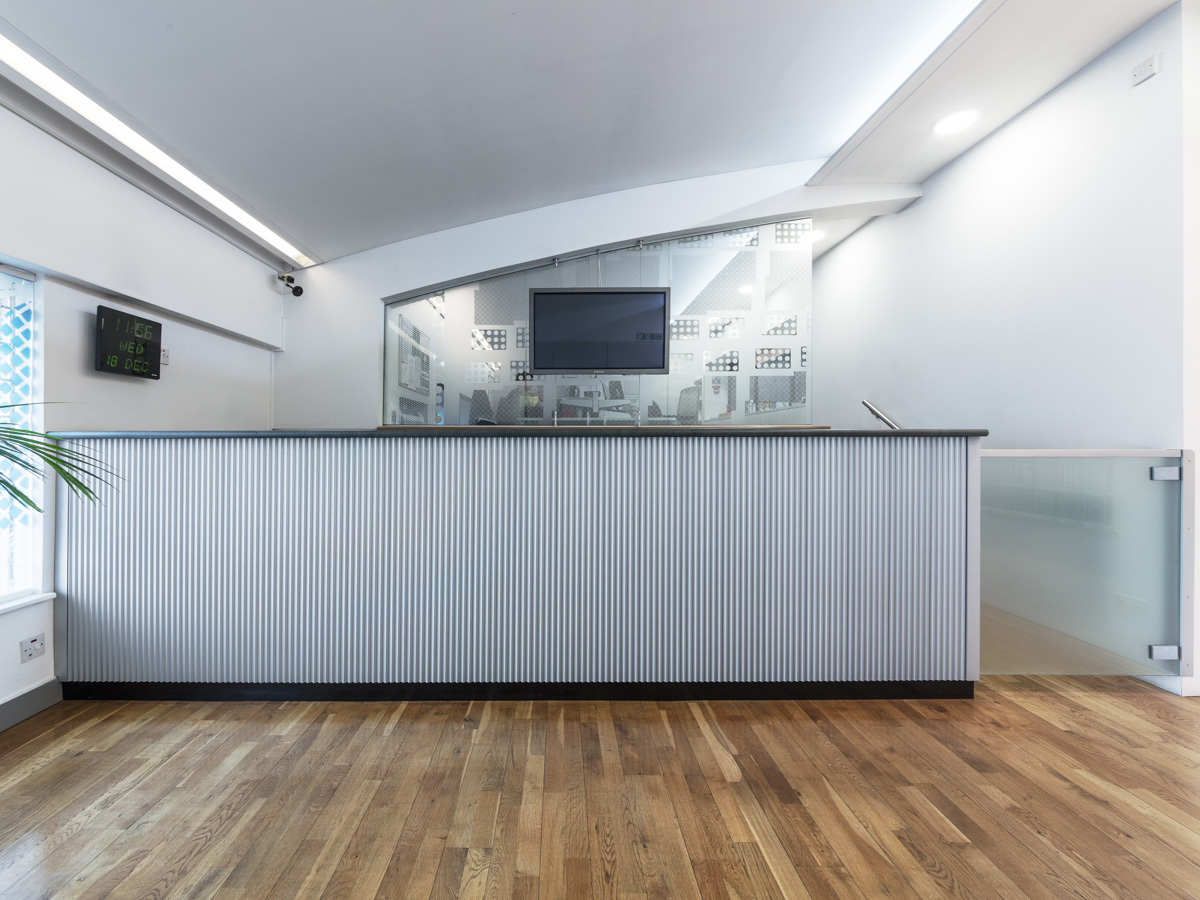

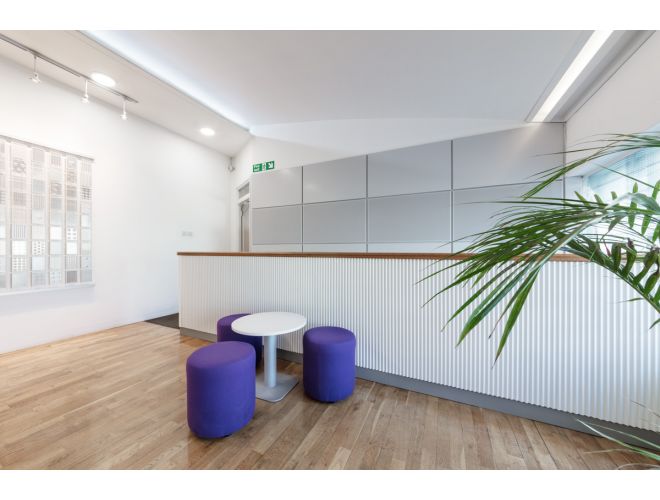

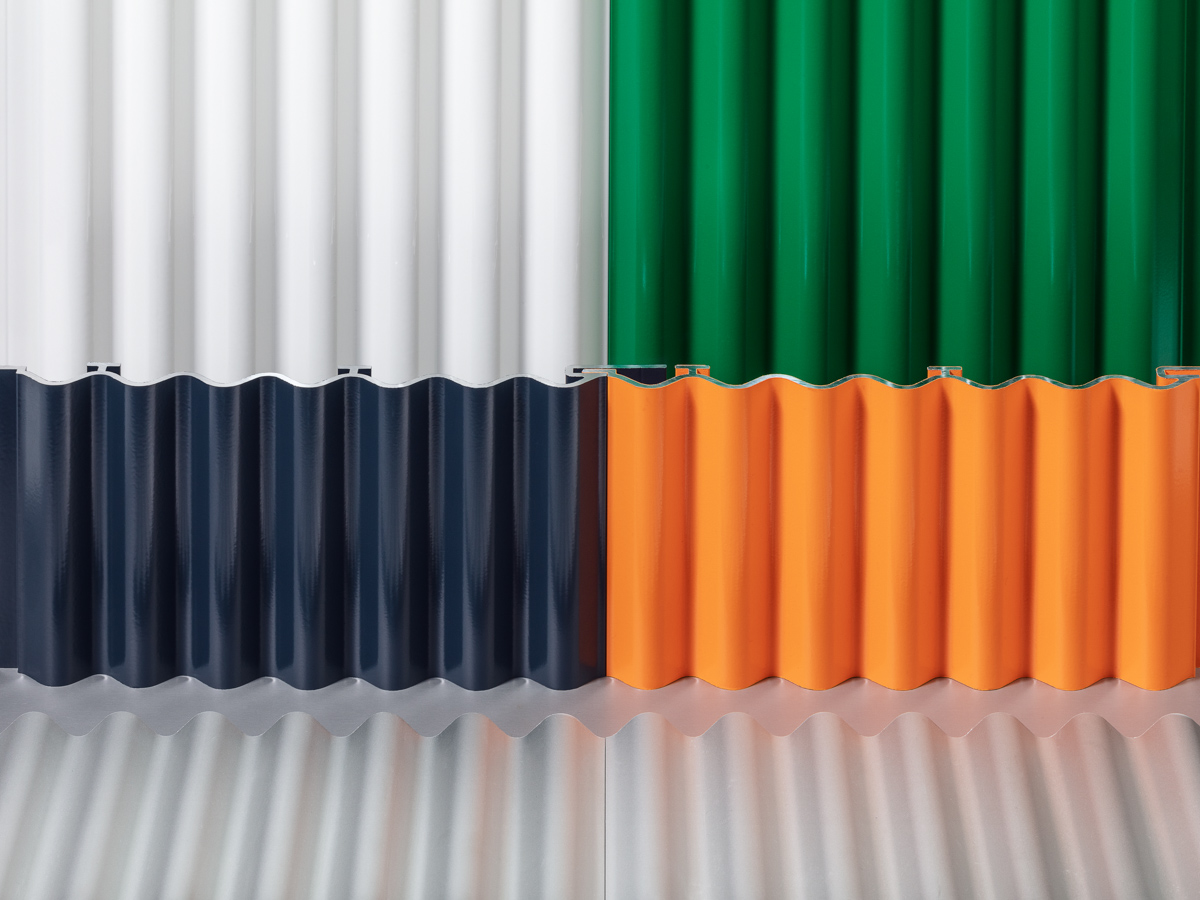

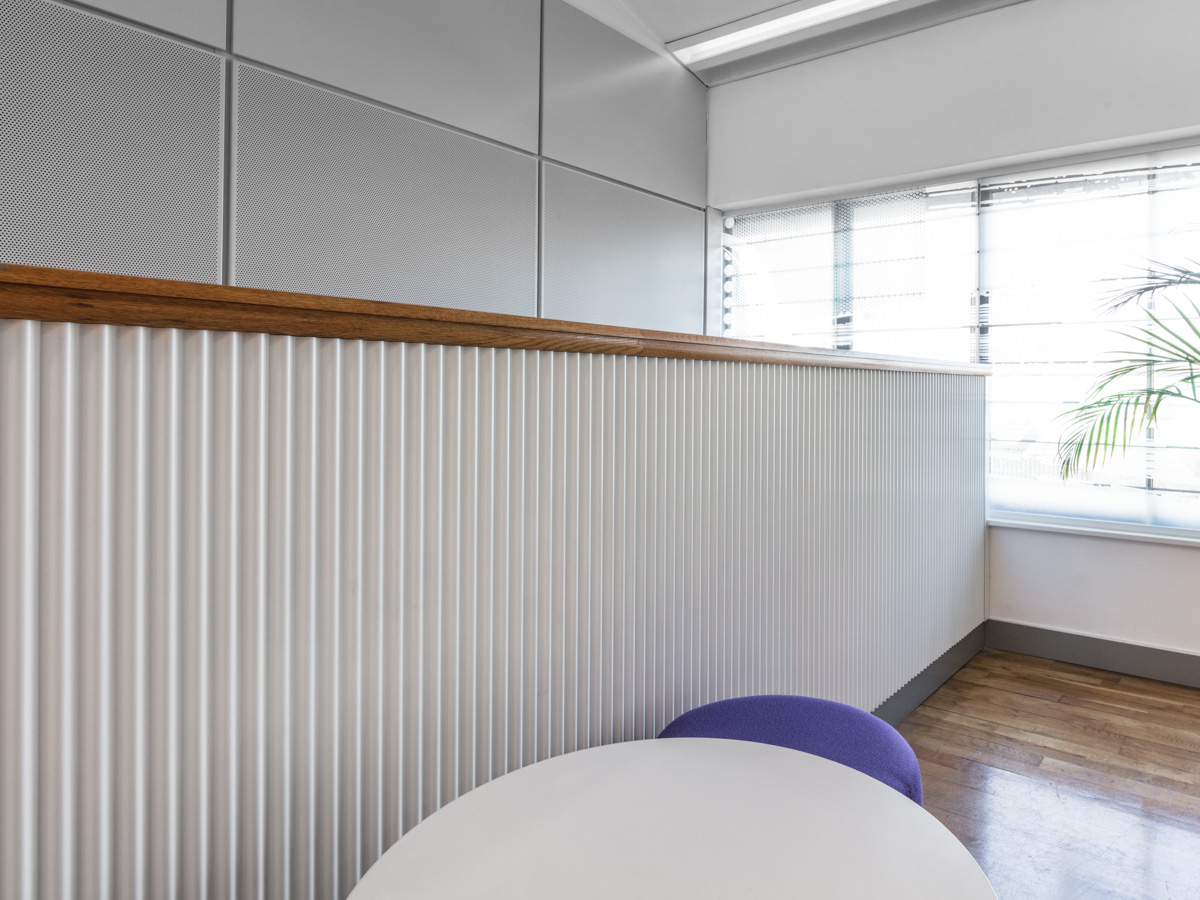

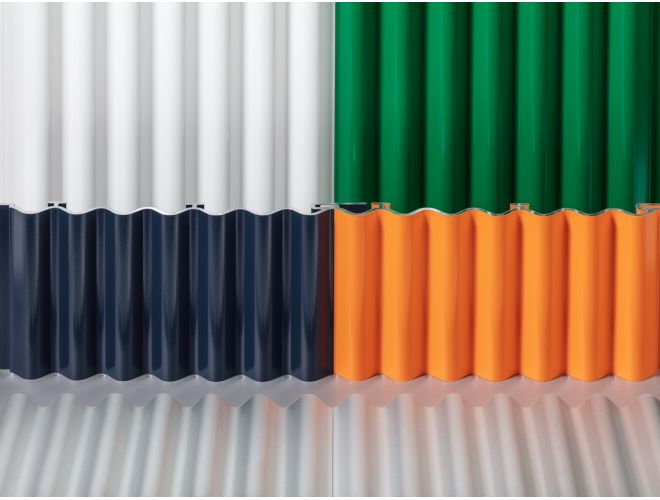

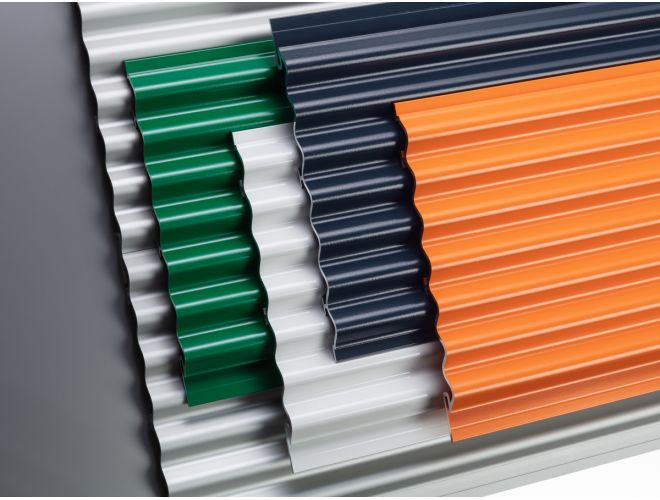

The natural anodised surface provides an elegant and resilient finish to a wide variety of interiors including offices, leisure, and retail. Alternatively, powder coated colours can be provided to suit specific requirements.
For ease of installation the corrugated and trim profiles are supplied with pre-drilled fixing holes in the unseen fixing flange.
Simplicity’s extruded profiles are normally available in 2.5 and alternatively 3.0 metre lengths. The trim profiles are kept in 3.0 metre lengths.
Please note, that with anodised and or curved surfaces, there can be shade/tonal variations in the surface finish
(Tech Info Corrugated Profile System.pdf, 70 Kb) [View Document]
(Fixing Instructions Corrugated Profile System-converted (2).pdf, 193 Kb) [View Document]
(Maintenance of Aluminium Surfaces (1) (1).pdf, 232 Kb) [View Document]
(Health & Safety doc. (1) (1).pdf, 240 Kb) [View Document]
