GA 1040 / DOOR PIVOT PIN KIT

Description

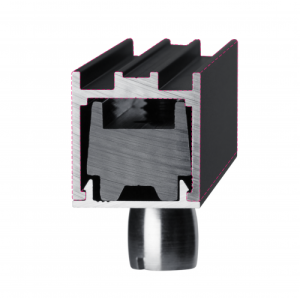

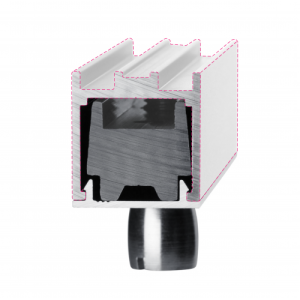

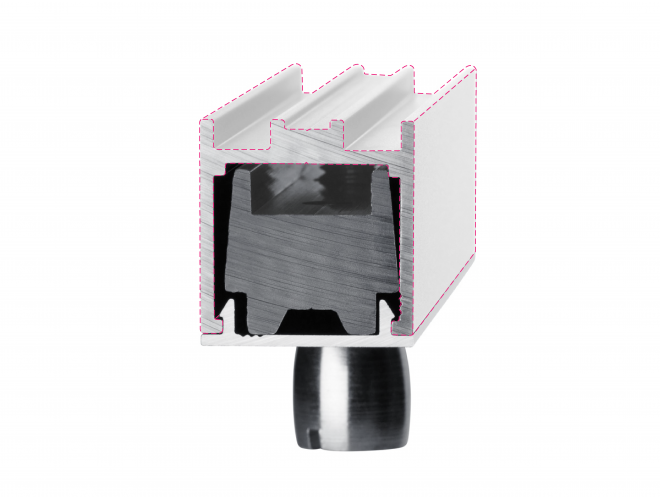

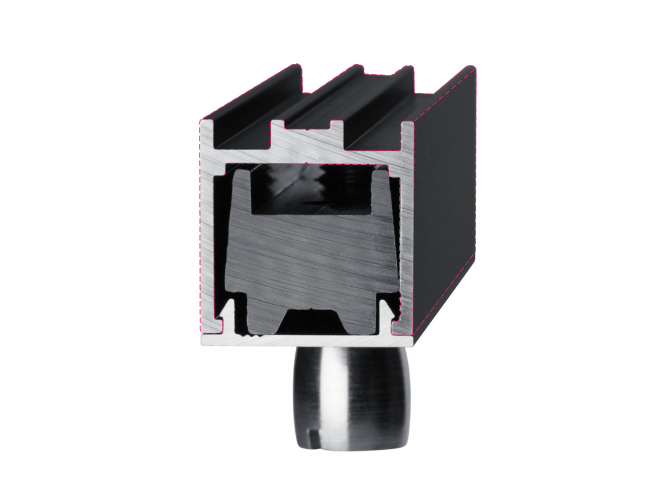

Pivot Pin Door Suspension Kit for 10/12mm Glass Doors

Elevate your interior design with the GA1040 Pivot Pin Door Suspension Kit, a high-performance hardware solution that integrates with our Aluminium Glazing Channel System. Engineered for 10 & 12mm glass, this innovative hardware is the professional  choice for creating elegant frameless pivot doors in modern office partitions and commercial interiors.

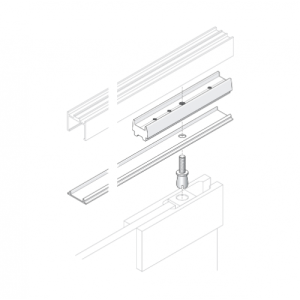

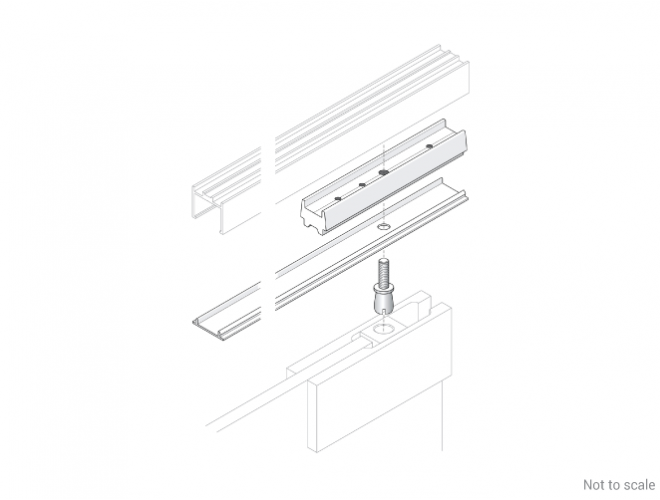

The pivot pin kit comprises:

  • Aluminium alloy extruded block with a pre-drilled hole to accept the pivot pin and 3 fixing holes.
  • Pivot Pin.
  • Pre-drilled snap-on cover plate.

Transform your glazed partitions into a statement of elegant functionality. Whether you are designing for a corporate headquarters or a bespoke interior, the GA 1040 kit provides the “wow factor” and structural integrity your project demands.

Note:. Due to anodising being a reactive process, shade variations can occur between lengths.

Did you Know?

We also provide a doorstop component kit GA 1039 that co-ordinates and complements our 10/12mm Glazing Channel System.

(Health and Safety doc. (1).pdf, 240 Kb) [View Document]

(Shuffle-less Install (6).pdf, 425 Kb) [View Document]

(Maintenance of Aluminium Surfaces (1).pdf, 232 Kb) [View Document]

(Glazing System tech info (2).pdf, 247 Kb) [View Document]

Glazing Channel 10/12mm Door Pivot Kit I GA 1040

Product Code: Category Tag

Please select the item and quantity required to view the Discount Structure.

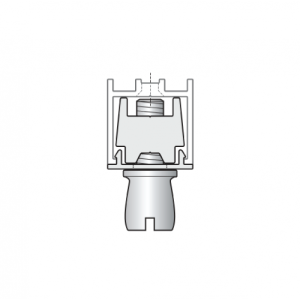

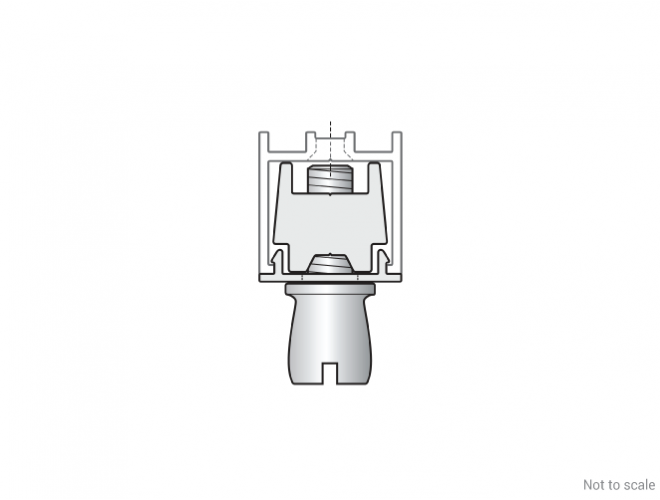

Unlike traditional side-mounted hinges, our pivot pin kit suspends the door from within the 25mm header channel GA 1031. This inventive hardware component allows glass door panels to smoothly open and close.

Seamless Aesthetics: Achieve that sought-after “invisible” look with a minimal 3mm gap between the door and glass panel.

Versatile Mounting: Intended for easy installation within the header channel GA1031 using secure screw mounting into the robust extruded alloy block with pre-drilled holes.

Durable Stability: Acts as both a hinge point and a stabilising mechanism, to assist with door alignment.

Compatibility: Optimized for 10/12mm glass.

System Integration: Fully compatible with the Gooding Aluminium Glazing Channel GA 1031.

Material: High-grade aluminium alloy grade 6063 components (block & cover plate) designed for longevity and wear resistance.

The GA 1040 Pivot Pin Door Suspension Kit is ideal for installers working on:

  • Frameless Glass Doors: Creating clean lines in glass partitions.
  • Modern Office Pods: Facilitating high-traffic door movement without bulky hinge hardware.
