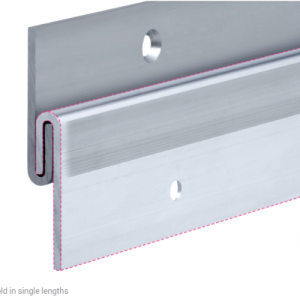

GA WP1 Aluminium Split Batten Single

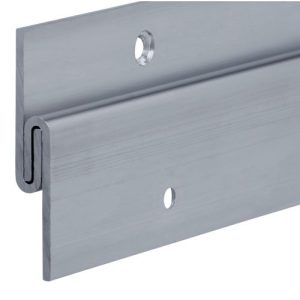

GA WP1 Aluminium Split Batten Pair

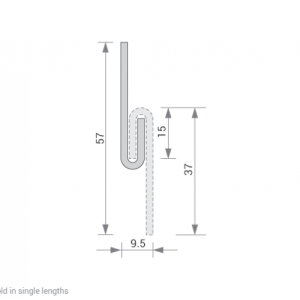

GA WP1 Aluminium Split Batten dimensions

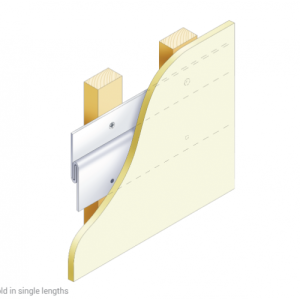

GA WP1 Aluminium Split Batten with board
GA WP1 Aluminium Split Batten Single
GA WP1 Aluminium Split Batten Pair
GA WP1 Aluminium Split Batten dimensions
GA WP1 Aluminium Split Batten with board

Description

Hanging wall panels, cabinets, and large mirrors is faster and more secure with the GA WP1 invisible aluminium gravity fixing system.
Designed for durability, this heavy-duty split batten features a rigid interlocking grip with built-in ‘lift-up’ lateral adjustment. This unique design speeds up installation and eliminates the ‘popping-off’ issues common with standard Z clips. With a slimline 10mm offset, you achieve a flush, professional finish every time.

To save you time on-site, these resilient alloy profiles arrive pre-drilled with countersunk holes at 200mm centres.

(Health and Safety doc. (1).pdf, 240 Kb) [View Document]

(Panel Fix Install.pdf, 351 Kb) [View Document]

(Panel-Fix Tech Info (4).pdf, 244 Kb) [View Document]

(Panel Fix Test Results (2).pdf, 301 Kb) [View Document]

GA WP1 Aluminium Split Batten | Heavy Duty Gravity Panel Fixing System

Product Code: Category Product Type:

Please select the item and quantity required to view the Discount Structure.

Online Delivery & Pricing Details

(Values shown exclude VAT)

Next day dispatch on FREE Overnight Delivery Service

Click and Collect Service – No minimum spend

Minimum spend for delivered orders £155

Product Info & Dispatch Times

Select ‘Surface Finish’ to display product details.

In stock items are dispatched by next working day.

Availability, for out of stock items, will be advised after entering the required number of items, & clicking ‘Add to Basket’.

Independent Strength Testing: High weight-bearing capacity (view the [Test Report PDF]).

Dimensions: Sold in 2.5-metre stock lengths.

Slim Profile: Low-profile 10mm fixing distance from wall to panel.

Ready to Install: Pre-drilled for No. 8 (4mm) countersunk screws.

Custom Options: Contact our Sales Office for cut-to-size lengths.

Alternative Options: Looking for a lighter solution? See our [GA WP2 Medium Duty System].
