Description

A hexagonal perforated aluminium sheet with 15 x 17mm apertures at 56% open area in a staggered pitch. The 15mm dimension is the flat-to-flat width of each hexagonal hole; 17mm is the point-to-point height. At 15mm, the hexagonal cells are prominent, clearly defined features of the sheet — each aperture is large enough to be read unmistakably as a hexagon at comfortable viewing distances, and the overall surface has a bold, open honeycomb character. The 56% open area is shared with the smaller 12 x 14mm product in the range, making these two specifications direct counterparts at different visual scales.

The 15 x 17mm specification suits applications where the hexagonal pattern is intended as a visible design element rather than a background texture — balustrade and railing infill panels, decorative screening, ceiling tile facings, and architectural cladding where the honeycomb geometry should be legible at the distances at which the panel will be viewed. Because open area is identical to the 12 x 14mm product, ventilation performance and acoustic transparency are equivalent; the distinction is purely visual scale. This product is available in 2.0mm material thickness only, in both standard sheet sizes. For a larger hexagonal aperture at higher open area, the 20 x 23mm product delivers 59% open area.

Health and Safety

(Health and Safety doc. (1).pdf, 240 Kb) [View Document]

Install

(Sheet – Install.pdf, 235 Kb) [View Document]

Maint.

(Maintenance of Aluminium Surfaces (1).pdf, 232 Kb) [View Document]

Perforations

(Perforations (2).pdf, 227 Kb) [View Document]

Tech Data

(Sheet – Perforated Tech Info (4).pdf, 242 Kb) [View Document]

Perforated Sheet – Hexagonal Holes – 15 x 17mm Holes, 56% Open Area

We can make custom size panels for you! Email: sales@goodingalum.com

Pitch:

Hole Size:

Open Area:

Size & Thickness:

Clear

Product Code: Category Hexagonal Holes

Please select the item and quantity required to view the Discount Structure.

Product Info & Dispatch Times

Select ‘Size & Thickness’ to display product details.

Dispatch times will be advised after entering the required number of items & clicking ‘Add to Basket’.

Online Delivery & Pricing Details

(Values shown exclude VAT)

Click and Collect Service – No minimum spend.

Minimum spend for delivered orders £155.

Carriage & packing for full size sheets £95.




       Posted on Google

   Dean Cass



 Trustindex verifies that the original source of the review is Google. A unique company in my experience, a wealth of products and the ability to customise, with terrific communications and a fast turn around. Highly recommended on all fronts.

Owner's reply
Hello Dean, thanks so much for your informative review.


      Posted on Google

   Jessica Hazelton



 Trustindex verifies that the original source of the review is Google. Excellent customer service & fast delivery. Very happy with their services.

Owner's reply
Hello Jessica, thanks so much for your review. We're pleased to have been able to help. Thanks again


      Posted on Google

   Marcus Gundry



 Trustindex verifies that the original source of the review is Google. Very helpful staff and great service

Owner's reply
Thanks for your kind review. We’re pleased to hear you found the service helpful.


      Posted on Google

   Nigel Clarke



 Trustindex verifies that the original source of the review is Google. Always helpful with my query’s and always supportive

Owner's reply
Hello Nigel, thanks so much for your kind review. We really appreciate. Glad to hear we've been able to help.


      Posted on Google

   Richard Brooks



 Trustindex verifies that the original source of the review is Google. Excellent customer service, fast delivery and unique products. Been using Gooding for many years and never had an issue.

Owner's reply
Hello Richard, thanks so much for taking the time to leave this review. It's much appreciated.


      Posted on Google

   Andrew Fletcher



 Trustindex verifies that the original source of the review is Google. Gooding Aluminium were very helpful and competitive. The PPC trims we required were delivered on time and were of good quality. Our client was very happy with the final result, thankyou.

Owner's reply
Hello Andrew, thanks for your helpful review. Much appreciated!


      Posted on Google

   BD Bespoke Glazing



 Trustindex verifies that the original source of the review is Google. Fast service with a very good range of stock

Owner's reply
Thank you so much for taking the time to write a review. We’re pleased we could help.


      Posted on Google

   Leisa Turnbull



 Trustindex verifies that the original source of the review is Google. Attentive and timely.  Good products as described. Highly recommend

Owner's reply
Many thanks for your positive feedback. Much appreciated.


      Posted on Google

   Alex Wainwright



 Trustindex verifies that the original source of the review is Google. They have a specific product and a general level of service that is unrivalled in our industry

Owner's reply
Hello Alex, thanks for your helpful feedback.


      Posted on Google

   Anastasia Karkazis



 Trustindex verifies that the original source of the review is Google. With their user-friendly and informative website, I easily ordered four samples of perforated aluminium. The quality overall was remarkable, from the material to the customer service via email and phone. I got exactly what I was looking for, thank you Gooding Aluminium!

Owner's reply
Thanks for taking the time to write a review and for the positive feedback.






      Verified by Trustindex  Trustindex verified badge is the Universal Symbol of Trust. Only the greatest companies can get the verified badge who has a review score above 4.5, based on customer reviews over the past 12 months. Read more

Description

Perforated Sheet – Hexagonal Holes – 15 x 17mm Holes, 56% Open Area

You May Also Like....

Perforated Sheet – Hexagonal Holes – 20 x 23mm Holes, 59% Open Area

Perforated Sheet – Hexagonal Holes – 12 x 14mm Holes, 56% Open Area

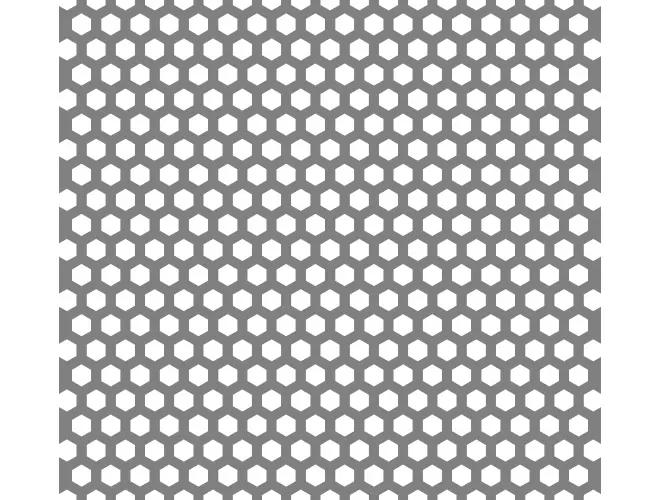

Hexagonal Perforated Aluminium Sheet – 9.0 x 10.4mm Holes, 41% Open Area

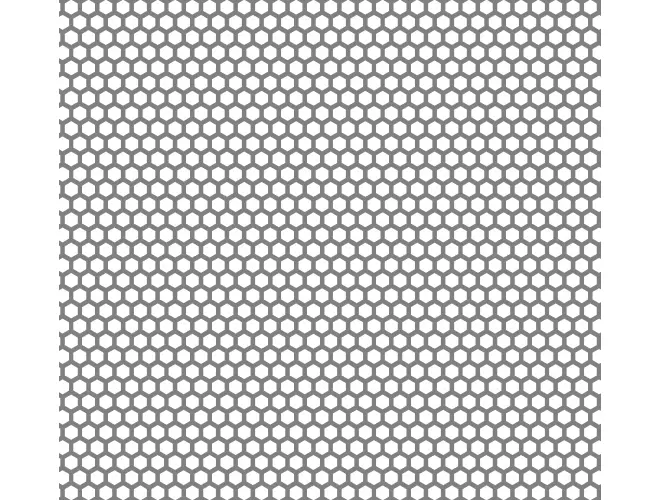

Hexagonal Perforated Aluminium Sheet – 6.0 x 6.9mm Holes, 52% Open Area
