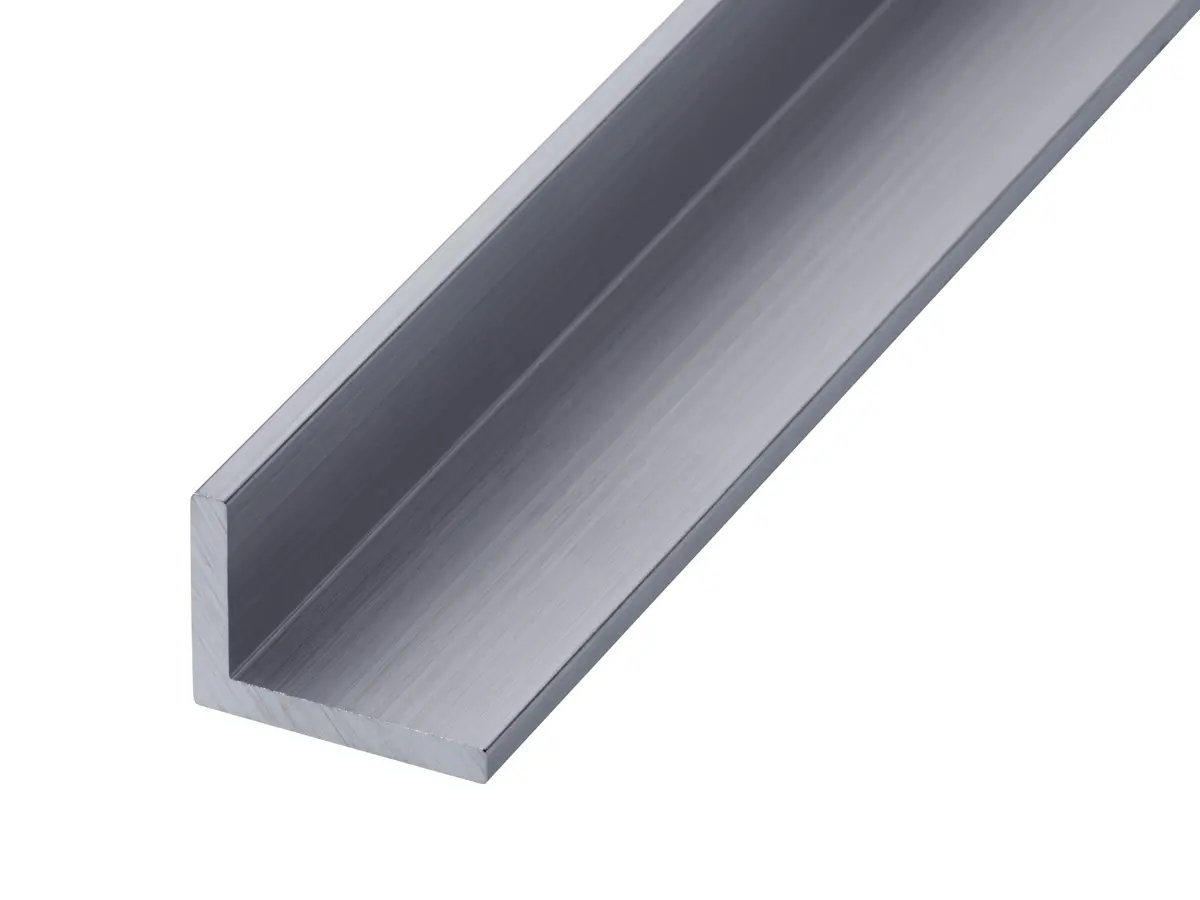

Aluminium angle unequal with mill finish

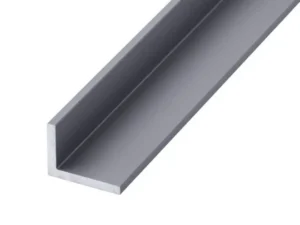

Aluminium angle unequal with anodised finish

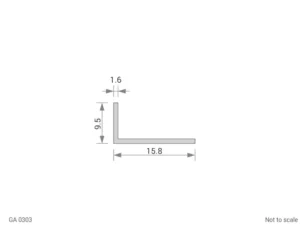

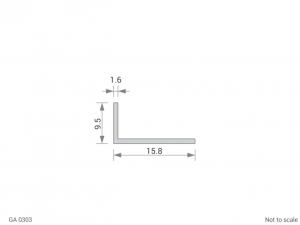

GA 0303 Aluminium angle unequal dimensions diagram

Description

GA’s Aluminium Unequal Angle is an asymmetric L-shaped structural profile with two legs of differing lengths, manufactured from high-grade 6063 aluminium alloy to BS EN 755 standards. Available from stock in mill (untreated) or natural anodised surface finish, unequal angles are the profile of choice wherever a design calls for different span widths or fixing dimensions on each leg.

The asymmetric leg geometry provides greater flexibility than an equal angle in structural, engineering, and bespoke fabrication applications — allowing designers and fabricators to bridge mismatched surfaces, accommodate different fixing spacings, or create stepped profiles, all from a single standard section. Stock lengths are 4000mm.

Should you require a powder coated finish or cut pieces, please contact our Sales Team.

N.B. Jig marks, up to 50mm in from each end (often less than this), can be apparent on anodised items. These marks can be cut away before fixing.

Shade variations can occur with anodised surfaces due to the reactive nature of this finishing process.

Health and Safety

(Health and Safety doc. (1).pdf, 240 Kb) [View Document]

Install

(Profiles and Extrusions Install (5).pdf, 238 Kb) [View Document]

Maint.

(Maintenance of Aluminium Surfaces (1).pdf, 232 Kb) [View Document]

Tech Data

(Tech info extrusions (4).pdf, 397 Kb) [View Document]

Test Data

(Test – Extrusion Resistance to Surface Marking.pdf, 227 Kb) [View Document]

Aluminium Angle – Unequal

Order Today to Claim Your Special Online Free Delivery Offer

Size (mm):

Surface Finish:

Clear

Product Code: Categories Aluminium Profiles & Extrusions, Aluminium Angle - Equal & Unequal Tag Unequal Aluminium Angle

Please select the item and quantity required to view the Discount Structure.

Online Delivery & Pricing Details

(Values shown exclude VAT)

Next day dispatch on FREE Overnight Delivery Service

Click and Collect Service – No minimum spend

Minimum spend for delivered orders £155

Product Info & Dispatch Times

Select ‘Surface Finish’ to display product details.

In stock items are dispatched by next working day.

Availability, for out of stock items, will be advised after entering the required number of items, & clicking ‘Add to Basket’.

Key Benefits

Design Flexibility: Differing leg lengths allow unequal angles to bridge mismatched surfaces, fix across different material thicknesses, or create stepped profiles that would be impractical with a symmetrical section — making them indispensable in bespoke engineering and general

Lightweight Structural Performance: Aluminium’s exceptional strength-to-weight ratio means unequal angle sections deliver reliable structural support at a 2/3rds fraction of the mass of equivalent steel profiles — reducing installation effort, transport costs, and the overall load placed on supporting structures.

Anodised Surface Markings Resistance: Our test data confirms that anodised profiles achieve up to four times greater resistance to surface marking compared with mill finish — an important advantage for exposed structural elements or installations subject to regular physical contact.

Outstanding Corrosion Resistance: The natural oxide layer inherent to aluminium makes unequal angles highly resistant to corrosion in marine, coastal, and high-humidity environments — eliminating the ongoing maintenance and re-treatment costs associated with steel alternatives.

Cost-Effective & 100% Recyclable: The adaptability of a single unequal angle section across multiple fixing configurations reduces the need for additional components. Combined with aluminium’s full recyclability without loss of mechanical properties, these profiles deliver strong whole-life value.

Specifications

Profile Type: Asymmetric L-Section (Unequal Angle)

Dimensions: Please refer to individual product listings for full size options

Material: High-grade 6063 Aluminium Alloy to BS EN 755 Standards

Length: 4000mm standard stock lengths

Available Finishes: Mill (Untreated) or Natural Anodised

Finish Notes: For anodised finishes, minor jig marks (electrical contact points) may be visible within 50mm of each end. These are a standard part of the process and can be trimmed during final fitting. Shade variations may occur between production batches due to the reactive nature of anodising.

Applications

Transport & Vehicle Manufacturing: Unequal angles are widely used in the construction of trailer bodies, truck beds, running boards, and commercial vehicle frames, where the asymmetric profile accommodates complex fixing requirements and differing span dimensions across the structure.

Marine & Outdoor Structures: Aluminium’s inherent corrosion resistance combined with the anodising process makes unequal angles a natural choice for boat frames, dock structures, marine equipment housings, and any outdoor application in saltwater or high-humidity environments where maintenance access is limited.

Industrial & Automation Environments: Frequently used for machine guards, conveyor framework, robotic workstation structures, and cable tray supports in factory settings — where the longer leg can be fixed to the main structure while the shorter leg provides the edge or lip required.

Furniture, Interiors & DIY: Unequal angles lend themselves to bespoke furniture frames, cabinet construction, shelving supports, and in-store fixtures, where the differing leg lengths can be exploited for creative jointing, recessed fixing solutions, or flush-face mounting.
