Slotted Perforated Aluminium Sheet

Directional Airflow and Louvre-Effect Screening

The defining characteristic of single slot perforation is its directional behaviour. Where round, square, or hexagonal holes allow air, light, and sightlines to pass equally in all directions, an elongated slot creates a bias. Air moves more freely along the length of the slot than across its narrow width, and the viewing angle through the sheet changes depending on whether the observer is looking along the slot axis or across it.

This directional quality makes single slot sheets function in a similar way to a fixed louvre — guiding airflow along a preferred axis while restricting the view from oblique angles. In practical terms, a wall-mounted slot panel can ventilate a plant room or service riser while limiting the visual exposure of the equipment behind it. A ceiling-mounted panel can allow conditioned air to flow downward through the slots while screening the ductwork and services above from direct view.

The degree of directional control depends on the ratio between slot length and slot width. The 80.0 x 25.0mm slot, for example, has a length-to-width ratio of roughly 3:1 — it is a relatively open, wide slot that allows generous airflow in all directions. The 20.0 x 4.0mm slot has a 5:1 ratio, creating a narrower aperture that is more restrictive across the short axis and more directional in its airflow and screening behaviour.

Parallel and Staggered Pitch Layouts

Every slot size in the single slot range is available in both parallel and staggered pitch, and the choice between them affects both the visual appearance and the functional performance of the sheet.

In a parallel pitch layout, all slots are aligned in straight rows across the sheet. Every slot in each row sits directly alongside its neighbours, and the rows repeat at regular intervals down the sheet. This creates a clean, regimented pattern with strong horizontal or vertical lines depending on the orientation of the sheet during installation. Parallel pitch is the simpler, more formal layout — well suited to applications where the sheet will be framed or bordered and a neat, ordered appearance matters.

In a staggered pitch layout, alternate rows of slots are offset so that each slot sits between the gaps in the adjacent rows. This has two practical effects. First, it distributes the perforated material more evenly across the sheet surface, improving structural consistency and reducing the risk of weak lines forming along unperforated strips between slot rows. Second, it creates a more visually active pattern with a woven or interlocking quality that reads as a busier, more textured surface than parallel pitch.

Importantly, the same slot sizes and open area percentages are offered in both layouts. Switching between parallel and staggered is a decision about visual character and stress distribution, not about airflow capacity.

From Fine-Scale Grilles to Large-Format Screening

The single slot range spans a wide size spectrum, and the two ends of the range serve markedly different applications.

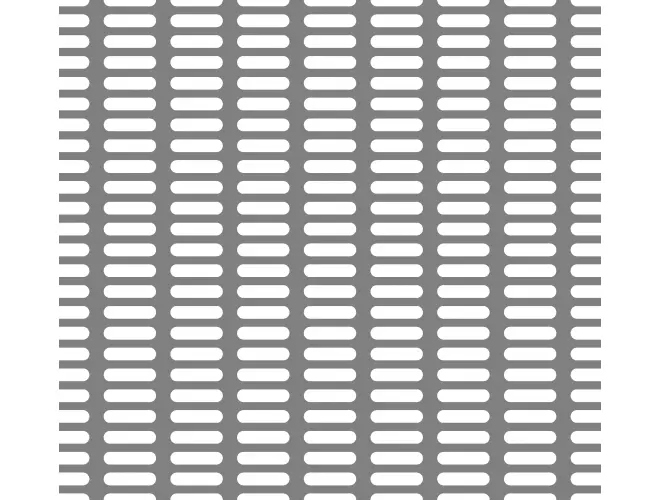

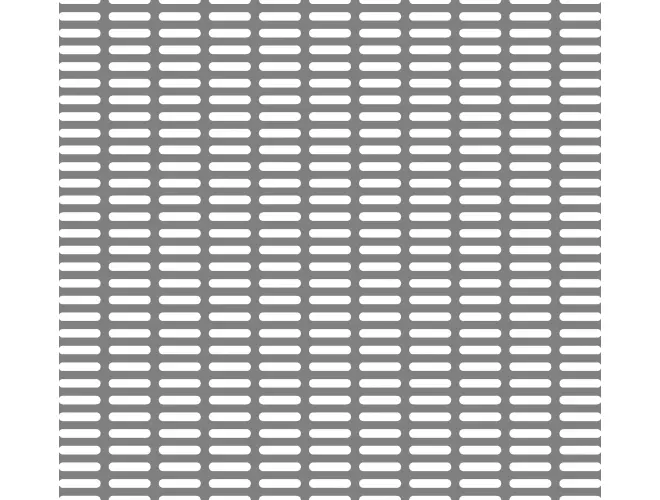

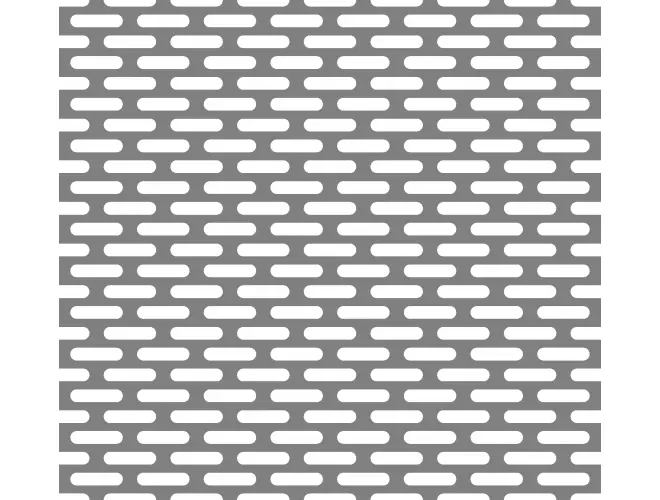

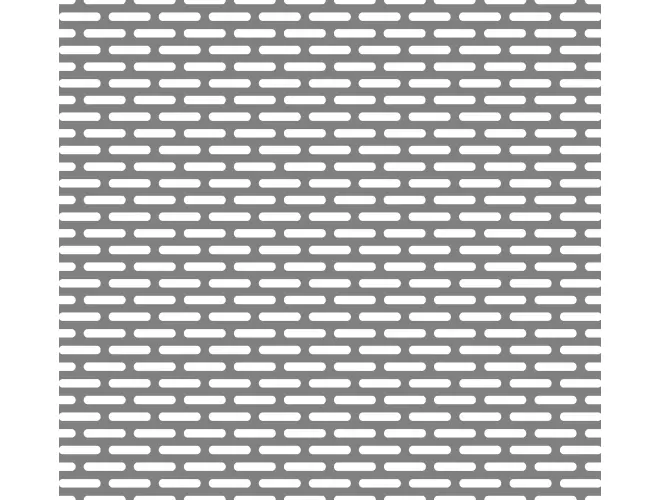

At the smaller end, the 20.0 x 4.0mm and 25.0 x 6.0mm slot sizes produce a fine, tightly spaced pattern with open areas of 40% and 44% respectively. At these dimensions, the individual slots are visible up close but read as a uniform texture from a short distance. These sizes suit indoor ventilation panels, radiator covers, cabinet ventilation inserts, and equipment enclosures where modest airflow is needed through a visually restrained surface.

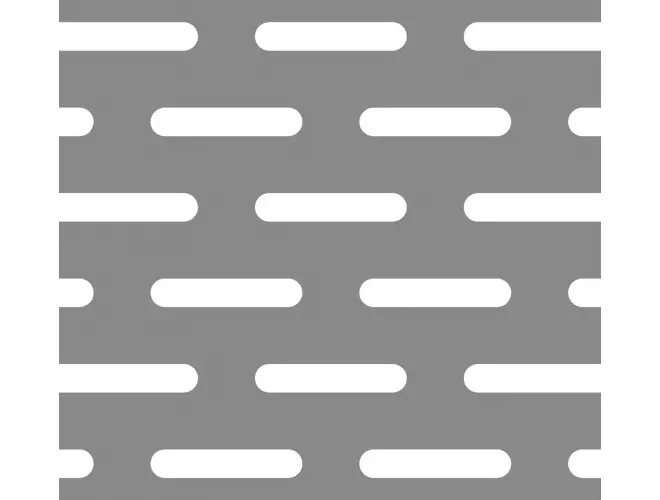

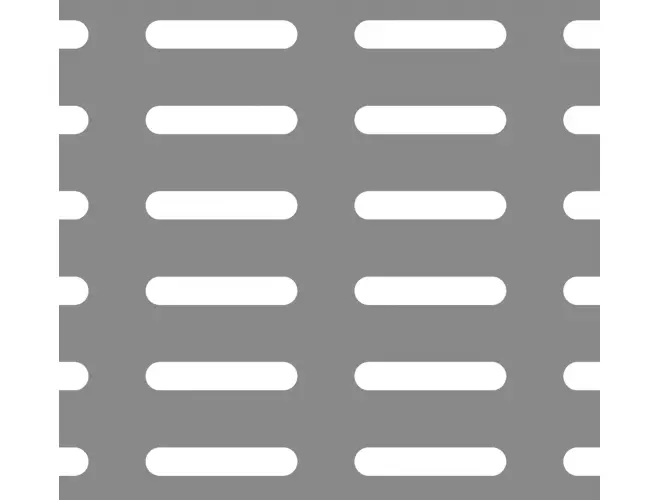

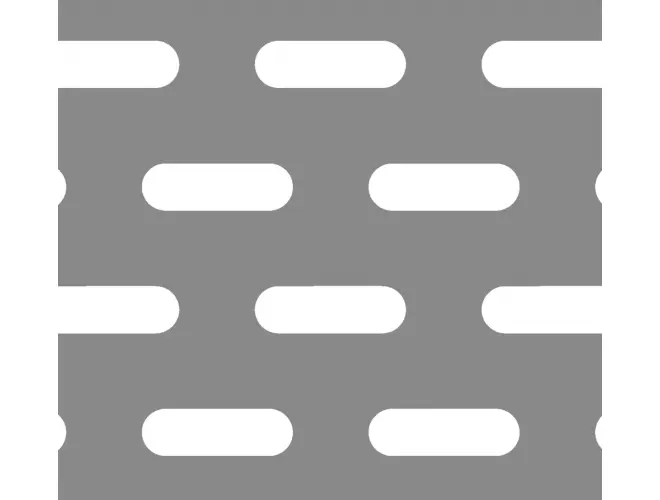

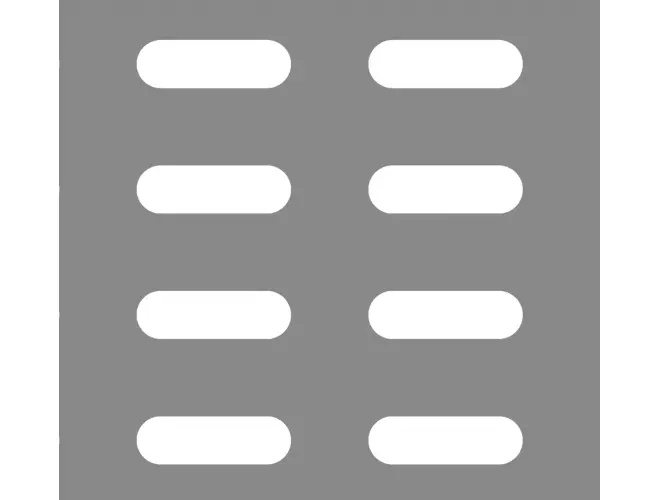

At the larger end, the 80.0 x 15.0mm and 80.0 x 25.0mm slot sizes produce a bold, clearly defined louvre pattern. The slots are individually prominent, and the sheet reads as an open screening panel rather than a perforated surface. Open areas range from 23% (staggered pitch with narrower slots) up to 44% (parallel pitch with wider slots), providing a broad choice between visual privacy and ventilation throughput. These larger sizes are suited to external screening, plant enclosures, car park ventilation panels, service riser cladding, and any application where the panel needs to move large volumes of air while maintaining a structured, linear appearance.

Made to Order with Fast Dispatch

All slotted perforated aluminium sheets are manufactured to order using Gooding Aluminium’s JIT (Just-In-Time) production process. Each sheet is produced against the specific order rather than drawn from pre-perforated stock, ensuring accurate quantities, consistent quality across every sheet in a batch, and no surplus material.

Standard orders are normally dispatched within 2–5 working days and delivered via an overnight nationwide service. For projects requiring sheets cut to non-standard dimensions, supplied with plain border margins, or finished with a polyester powder coat surface, Gooding Aluminium’s processing and finishing services can accommodate these requirements within a short lead time.

Free material samples are available for all sheets in the single slot range. Samples are posted first class and typically arrive within a couple of days, allowing specifiers and purchasing teams to assess the slot scale, pitch layout, and screening effect before committing to a full order. With slotted patterns in particular, the physical sample is valuable — the louvre-like screening effect and the way sightlines change with viewing angle are difficult to evaluate from a flat image on screen.
