Description

Aluminium Glazing U-Channel for Glass Partitions and Screen Panels

The Shuffle-Less Glazing Channel GA 1035 is an inventive floor-level, two-part system designed for the rapid installation of interior glass partitions. By using this 2-part U-channel, you can pair it with a minimal head channel GA 1031 instead of deep-flange channels, achieving a sleek, professional, and slimline appearance for framed partitions and screening panels.

Precision-engineered for durability, the GA 1035 is compatible with 10 & 12mm glass thicknesses. It is available from stock in three high-quality finishes: Black Anodised, Natural Anodised, and White Powder Coated.

Compatibility

(Health and Safety doc. (1).pdf, 240 Kb) [View Document]

(Shuffle-less Install (6).pdf, 425 Kb) [View Document]

(Maintenance of Aluminium Surfaces (1).pdf, 232 Kb) [View Document]

(Glazing System tech info (2).pdf, 247 Kb) [View Document]

(Glazing Channel Test Data.pdf, 220 Kb) [View Document]

GA 1035 – 2 Part Aluminium Glazing Channel for 10/12mm Glass

Product Code: Category Product Type:

Please select the item and quantity required to view the Discount Structure.

Online Delivery & Pricing Details

(Values shown exclude VAT)

Next day dispatch on FREE Overnight Delivery Service

Click and Collect Service – No minimum spend

Minimum spend for delivered orders £155

Product Info & Dispatch Times

Select ‘Surface Finish’ to display product details.

In stock items are dispatched by next working day.

Availability, for out of stock items, will be advised after entering the required number of items, & clicking ‘Add to Basket’.

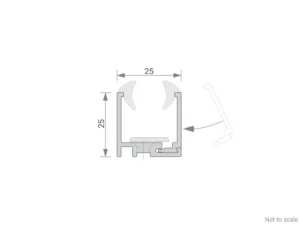

Profile Type: 2-part aluminium U-channel with integral nibs to secure glazing gaskets.

Dimensions: 25mm wide x 25mm high.

Material: High-grade 6063 aluminium to BS EN755 standards.

Compatibility: With the other components in the GA 10/12mm Glazing System.

Dry-Fit Glazing System:Eliminate the need for messy silicone. This system includes clear-stable glazing wedges (gaskets) and flat setting blocks free of charge with every order.

Easy-Fit Pre-Drilled Holes:Each 3050mm stock length comes with pre-drilled countersunk fixing holes, significantly reducing installation time on-site.

Safe-Fit Impact Resistance:Extruded from 6063-grade aluminium alloy, this channel has been tested for soft-body impact resistance when used with 12mm laminated glass.

Secret-Fit Aesthetic: Secure your glazed panels with hidden screw fixings that are completely concealed by the channel sides, maintaining a top-quality finished appearance.

Office Glass Partitions:Modern commercial workspaces.

Leisure & Healthcare:Gyms, spas, hospitals, and clinics.

Education & Public Spaces:Schools, universities, and libraries.
