GA 1030 / ALUMINIUM GLAZING CHANNEL

Description

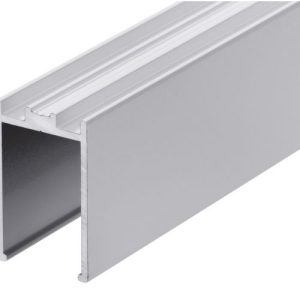

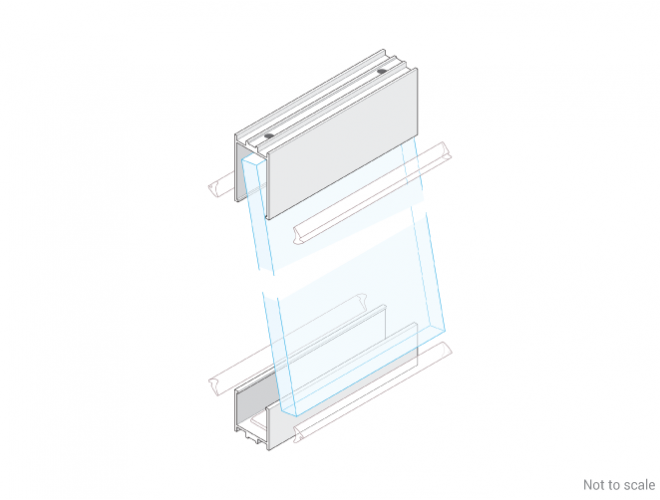

Aluminium Alloy Header Channel for Shuffle Glazing

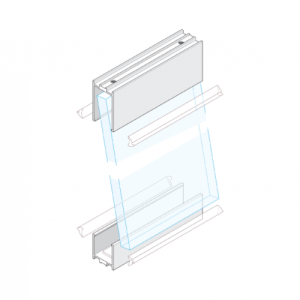

The GA1030 Aluminium Glazing Channel is the ceiling-level U-channel header intended for shuffle-glazing glass panels into partitions and screens. This robust aluminium alloy header profile is fully compatible with the GA1031 fixed flange floor and side U-channel, allowing you to create slimline, professional frame arrangements for any commercial space.

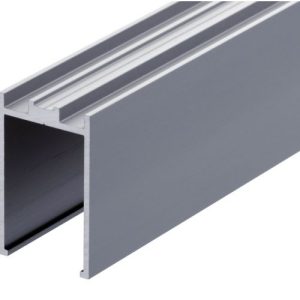

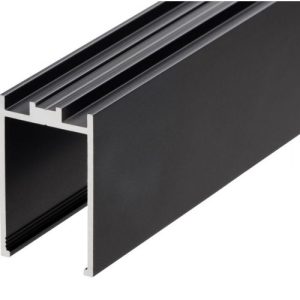

Precision-engineered for durability, the GA1030 U Channel supports 10 &12mm glass thicknesses. It is available for immediate dispatch in three high-quality architectural finishes: Natural Anodised, Black Anodised, and White Powder Coated.

Compatibility:



Note: For Shuffle-Less applications, visit our GA1035 Shuffle-Less Glazing Channel for 10-12mm glass.

(Health and Safety doc. (1).pdf, 240 Kb) [View Document]

(Shuffle Glazing Install (1).pdf, 303 Kb) [View Document]

(Maintenance of Aluminium Surfaces (1).pdf, 232 Kb) [View Document]

(Glazing System tech info (2).pdf, 247 Kb) [View Document]

Easy-Fit 10/12mm Aluminium Glazing Channel GA1030

Product Code: Category Tag

Please select the item and quantity required to view the Discount Structure.

Easy-Fit Pre-Drilled Holes: Each 3050mm stock length features factory-drilled and countersunk fixing holes, significantly reducing on-site installation time.

Dry-Fit Glazing System: No need for wet silicone. To simplify your workflow Free glazing wedge and setting blocks are included with every channel order.

Secret-Fit Aesthetic: Secure your glazed panels with hidden screw fixings completely concealed by the channel sides for a clean, minimalist look.

UK Mainland Delivery: Get fast, reliable Free shipping on all aluminium glazing channels directly to your site or workshop.

Profile Type: Header U-Channel with integrated nibs to secure the glazing wedge.

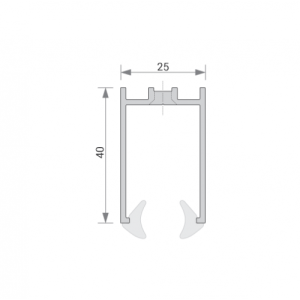

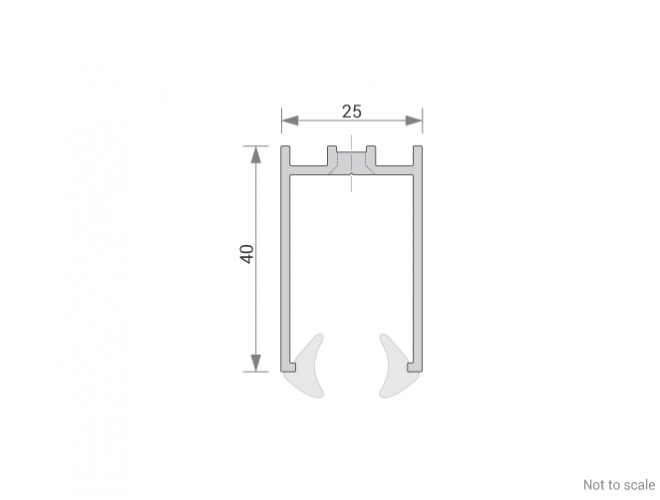

Dimensions: 25mm (W) x 40mm (H).

Material: High-grade 6063 Aluminium Alloy to BS EN 755 Standards.

Length: 3050mm.

Finish Notes: For anodised finishes, minor jig marks (electrical contact points) may be visible within 25mm of each end. These are a standard part of the process and can be trimmed during final fitting. Please note that shade variations may occur between different production batches due to the reactive nature of anodising.

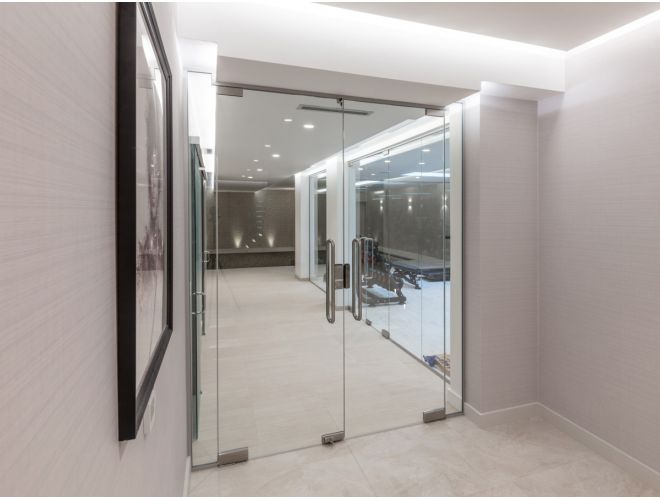

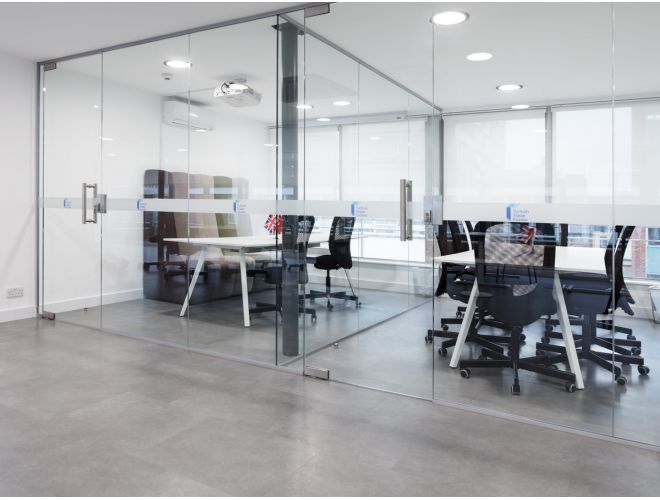

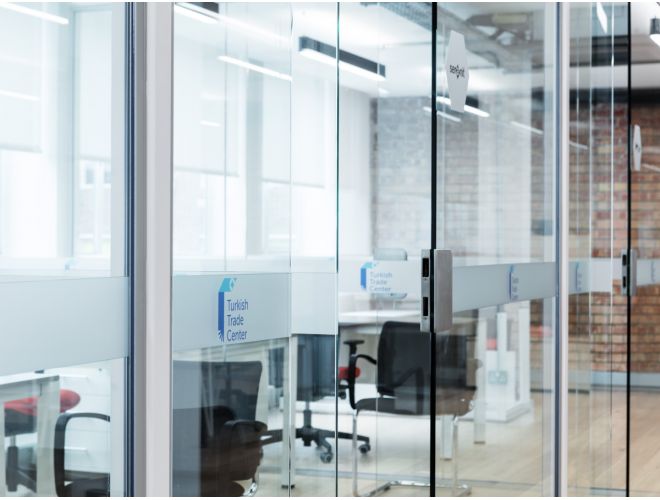

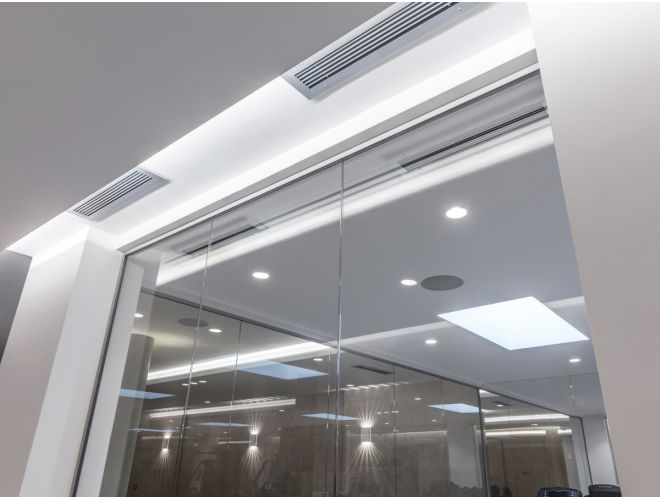

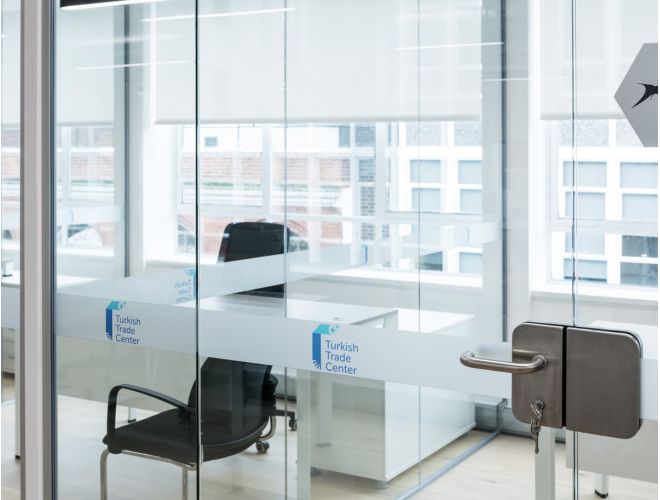

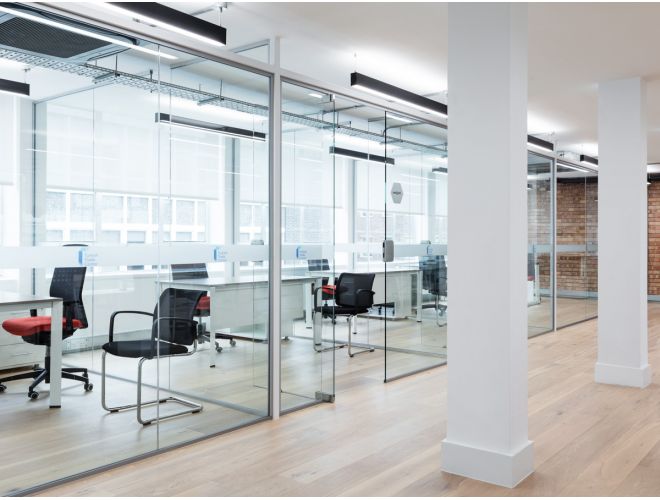

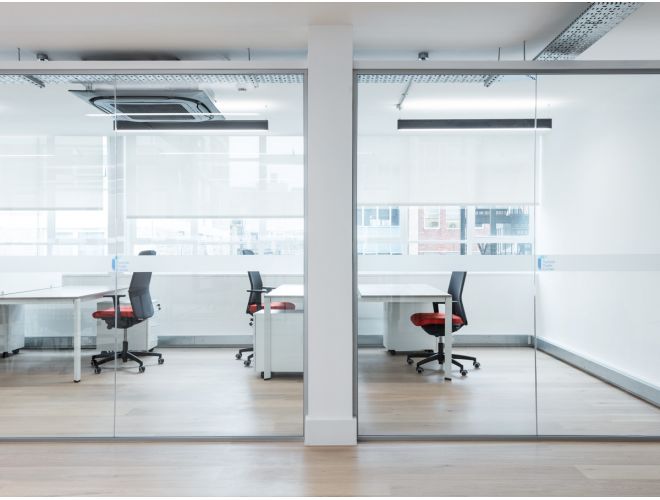

Office Partitions: Create contemporary, light-filled commercial workspaces.

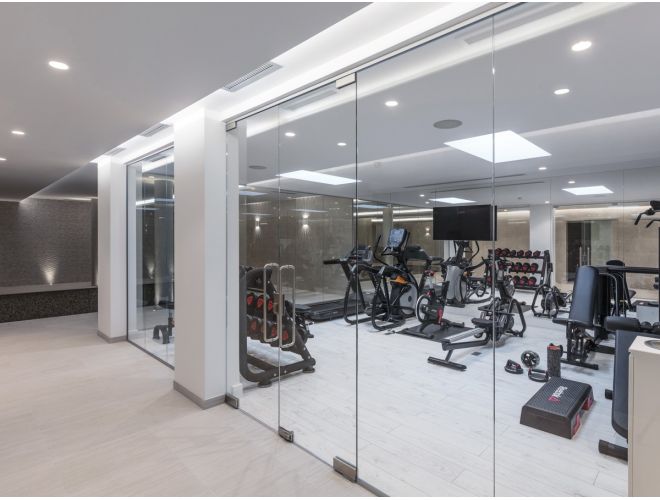

Healthcare & Leisure: Hygienic Anodised & Powder Coated non-corrosive surfaces are suitable for hospitals, clinics, gyms, and spas.

Education: High-traffic installations in schools, colleges, and universities.

Public Spaces: Minimalist framing for libraries, museums, and galleries.

Online Delivery & Pricing Details

(Values shown exclude VAT)

Next day dispatch on FREE Overnight Delivery Service

Click and Collect Service – No minimum spend

Minimum spend for delivered orders £155

Product Info & Dispatch Times

Select ‘Surface Finish’ to display product details.

In stock items are dispatched by next working day.

Availability, for out of stock items, will be advised after entering the required number of items, & clicking ‘Add to Basket’.
