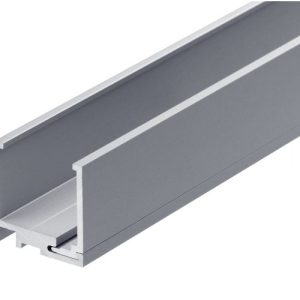

GA 1035 / 2 PART GLAZING CHANNEL

Description

Aluminium Glazing U-Channel for Glass Partitions and Screen Panels

The Shuffle-Less Glazing Channel GA 1035 is an inventive floor-level, two-part system designed for the rapid installation of interior glass partitions. By using this 2-part U-channel, you can pair it with a minimal head channel GA 1031 instead of deep-flange channels, achieving a sleek, professional, and slimline appearance for framed partitions and screening panels.

Precision-engineered for durability, the GA 1035 is compatible with 10 & 12mm glass thicknesses. It is available from stock in three high-quality finishes: Black Anodised, Natural Anodised, and White Powder Coated.

Compatibility

(Health and Safety doc. (1).pdf, 240 Kb) [View Document]

(Shuffle-less Install (6).pdf, 425 Kb) [View Document]

(Maintenance of Aluminium Surfaces (1).pdf, 232 Kb) [View Document]

(Glazing System tech info (2).pdf, 247 Kb) [View Document]

(Glazing Channel Test Data.pdf, 220 Kb) [View Document]

Order the GA 1035 Shuffle-Less Glazing Channel for 10-12mm glass

Easy-fit, dry-fit system with pre-drilled holes. Free UK mainland delivery on aluminium glazing channels.

Easy-Fit Shuffle-Less 10/12mm Glazing Channel GA 1035

Product Code: Category Tag

Please select the item and quantity required to view the Discount Structure.

Dry-Fit Glazing System:Eliminate the need for messy silicone. This system includes clear-stable glazing wedges (gaskets) and flat setting blocks free of charge with every order.

Easy-Fit Pre-Drilled Holes:Each 3050mm stock length comes with pre-drilled countersunk fixing holes, significantly reducing installation time on-site.

Safe-Fit Impact Resistance:Extruded from 6063-grade aluminium alloy, this channel has been tested for soft-body impact resistance when used with 12mm laminated glass.

Secret-Fit Aesthetic: Secure your glazed panels with hidden screw fixings that are completely concealed by the channel sides, maintaining a top-quality finished appearance.

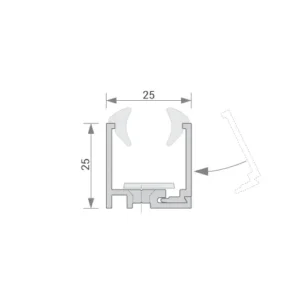

Profile Type: 2-part aluminium U-channel with integral nibs to secure glazing gaskets.

Dimensions: 25mm wide x 25mm high.

Material: High-grade 6063 aluminium to BS EN755 standards.

Compatibility: With the other components in the GA 10/12mm Glazing System.

Office Glass Partitions:Modern commercial workspaces.

Leisure & Healthcare:Gyms, spas, hospitals, and clinics.

Education & Public Spaces:Schools, universities, and libraries.
