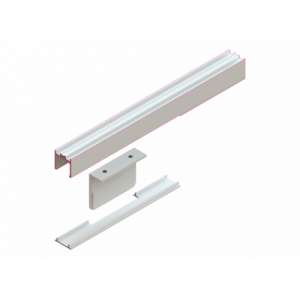

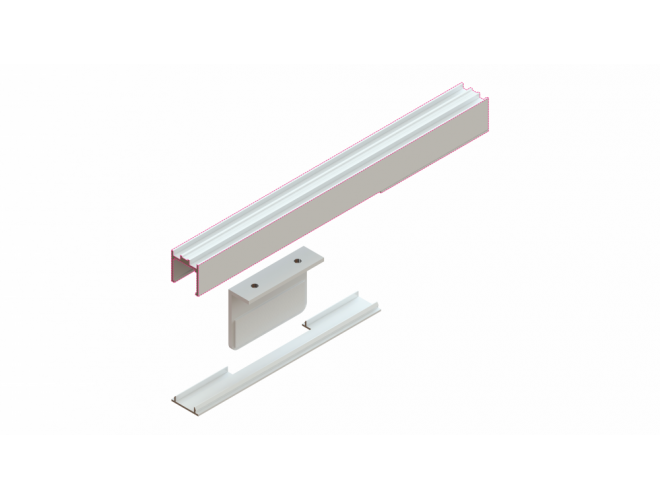

Dotted_Line_White_Poweder_Coated_Exploded_Door_Stop_(002)

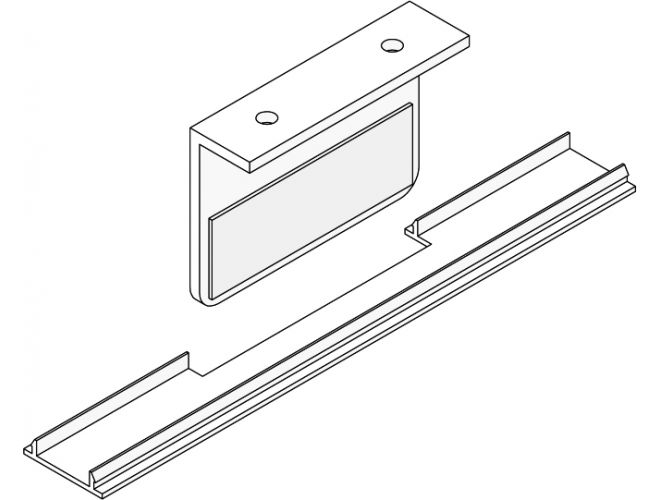

Door_Stop_Exploded_Top_Iso_View_no_Head_Channel_(002)

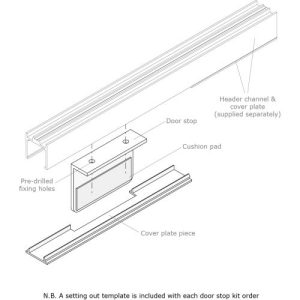

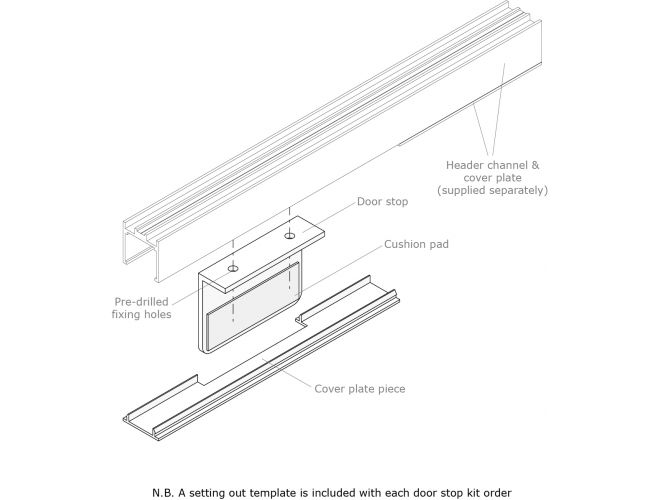

Door_Stop_Exploded_Top_Iso_View_A6_wAnnotation

Description

Reversible Door Stop Kit for 10/12mm Glass Doors

The GA 1039 is a precision-engineered reversible doorstop kit designed specifically for single-action, toughened glass doors within partition systems. Compatible with both left and right-hand opening configurations, this high-performance hardware offers a seamless “dry-fit” installation for modern interior glazing.

Integrated Partitioning System: Specifically intended for use with the GA 1031 Aluminium Glazing Channel (10/12mm).
Precision Fit: Includes a professional fixing template to ensure accurate location and perfect door alignment every time.
Premium Finishes: Available in Black Anodised, Natural Anodised, and White Powder Coated to perfectly match the other glazing system components.

Transform your glazed partitions into a statement of elegant functionality. Whether you are designing for a corporate headquarters or a bespoke interior, the GA 1039 doorstop kit provides for a functional door stop that is fit for the purpose your project demands.

Note: With anodised, jig marks (electrical contact points) may be visible up to 25mm in from each end. These marks are a natural part of the anodising process and can be trimmed away before final fixing. Due to anodising being a reactive process, shade variations can occur between lengths.

Did you Know?

We also provide a Pivot Pin Door Suspension Kit GA 1040 that co-ordinates and complements our 10/12mm Glazing Channel System.

Health and Safety

(Health and Safety doc (1).pdf, 240 Kb) [View Document]

Install

(Door Stop Kit Installation.pdf, 261 Kb) [View Document]

Maint.

(Maintenance of Aluminium Surfaces.pdf, 99 Kb) [View Document]

Tech Data

(Glazing System tech info (2).pdf, 247 Kb) [View Document]

GA 1039 – Glass Door Stop Kit 10/12mm Glass

Order Today to Claim Your Special Online Free Delivery Offer

Surface Finish:

Clear

Product Code: Category Aluminium Glazing Channels Product Type: Aluminium 10/12mm Glazing Channels

Please select the item and quantity required to view the Discount Structure.

Online Delivery & Pricing Details

(Values shown exclude VAT)

Next day dispatch on FREE Overnight Delivery Service

Click and Collect Service – No minimum spend

Minimum spend for delivered orders £155

Product Info & Dispatch Times

Select ‘Surface Finish’ to display product details.

In stock items are dispatched by next working day.

Availability, for out of stock items, will be advised after entering the required number of items, & clicking ‘Add to Basket’.

Specifications

Glass Compatibility: Optimized for 10mm and 12mm toughened glass.

System Pairing: Fully compatible with GA 1031 10/12mm Glazing Channels.

Material: High-grade 6063 aluminium alloy.

Shipping: Free UK mainland delivery on eligible orders.

Key Benefits

Simple, Rapid Installation: The provided template and pre-drilled components allow for a fast, accurate setup without complex measurements.

Versatile Design: The reversible functionality supports both left-hand and right-hand door swings, providing maximum flexibility on-site.

Aesthetic Coordination: Maintain a consistent visual style by matching the doorstop finish to your 10/12mm Glazing Channel system.

Durable Performance: Manufactured from high-grade 6063 aluminium alloy for long-term wear resistance in high-traffic environments.

Applications

Ideal Applications

Commercial Offices: Perfect for creating sleek, light-filled glass partitions and workspaces.
Healthcare & Leisure: Non-corrosive anodised surfaces are hygienic and suitable for hospitals, clinics, gyms, and spas.
Education & Public Spaces: Robust but slimline partitions for schools, libraries, and galleries.
